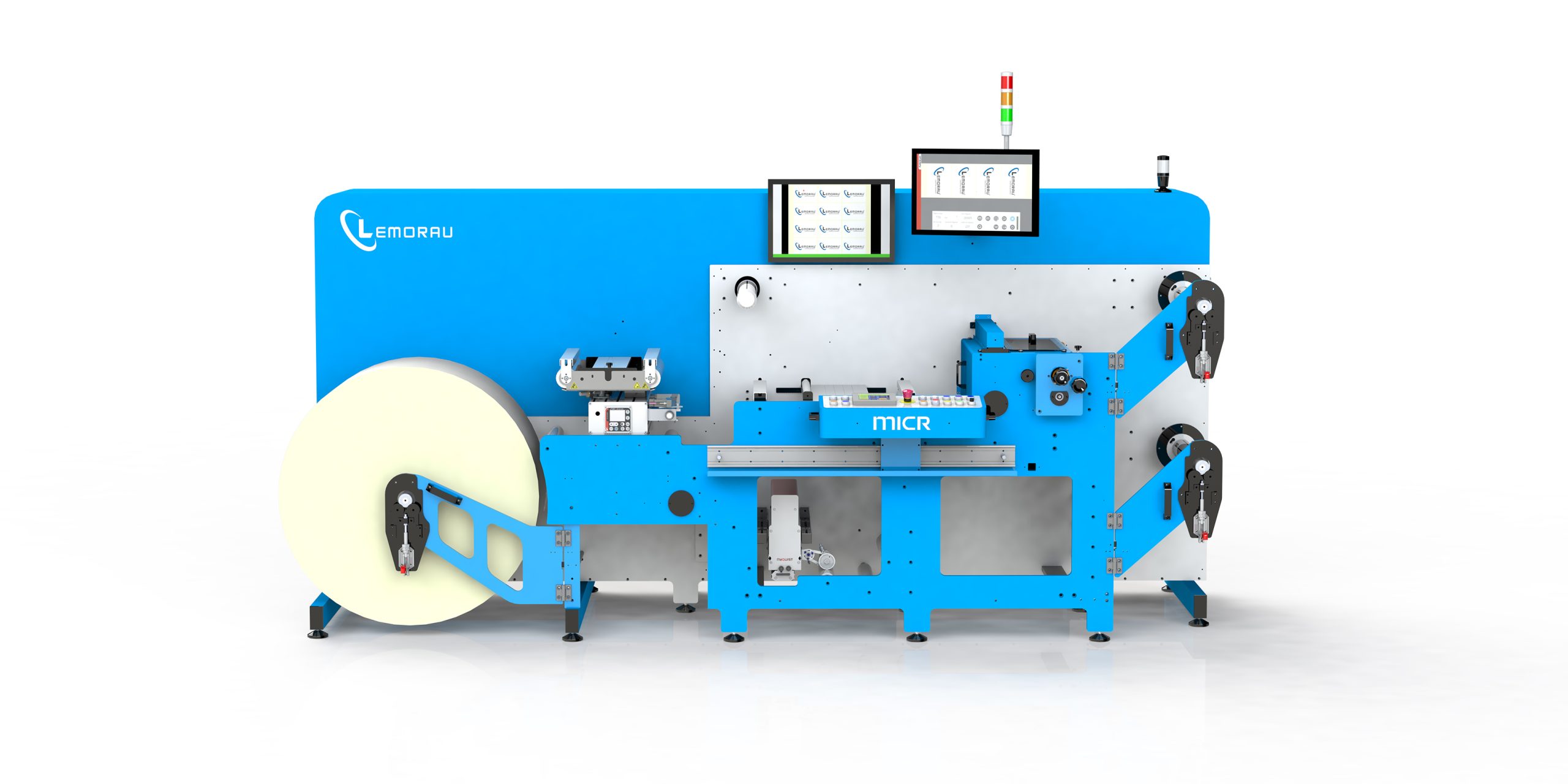

Lemorau MICR 3 is a high-speed modular finishing machine with a wide range of add-on options — die cutting, digital printing, flexo, cold foil, and 100% or 200% inspection. Its modular structure was built so new modules can be added even after purchase, installed right at the customer’s facility.
Standard Features
Standard Features
- Web width 350, 450, 520 mm (14″, 18″, 20″)
- Maximum speed: 200 m/min. (656 ft/min.) – type of material can influence the speed
- 2 adjustable splice tables with pneumatic clamps
- Electronic Counter (Labels/ Meters/ Rolls/ Total meters and labels Counter / Information of actual diameter)
- Job memory for easy and quick job set ups
- Paper and matrix break detection
- QRC (Quick Remote Connection) – For fast and easy access to the machine remotely
- Automatic web tension control system by servo motors – Constant and Taper tension
- Multi language HMI touch screen
- Electrical supply according to destination country (no need of transformers)
- CE conformity certificated, user manual and electrical scheme
UNWINDER
- Servo driven with max. Ø 1meter (40″)
- Pneumatic shaft ID 76mm (3″)
- Automatic stop at master roll end with programmable end of roll function
- Clockwise/counterclockwise unwinding
- Electronic web guide system with ultrasonic sensor which enables guiding of opaque and clear materials
SLITTING UNIT
- Equipped with 6 sets of circular knives with lateral adjustment – Can be added more as optional
- Air trim removal
REWINDING
- Servo driven equipped with 1 interchangeable pneumatic rewinder
- Shaft ID: 76mm (3″)
- Clockwise/counterclockwise rewinding (labels in/ labels out)
- Reverse jog
- Max. rewinder Ø 580 mm (23″) using single rewinder / 350mm (14″) using optional double rewinder
Optional Equipment
Optional Equipment
- Additional mandrels in customized sizes
- Additional slitting knives
- Anti-static bar
- Anvil roll with adjustable gap
- Automatic die mounting/ removal
- Automatic lubrication system
- Back scorer unit- manual/ automatic
- Bearer wipers & lubrication
- Clear on clear sensor
- Cold foil – full rotary or semi-rotary
- Corona treatment
- Custom die cutting unit according to existing cylinders
- Delam/Relam – rotary mode
- Double rewinder
- Flexo units – Semi-rotary/Rotary
- Full automatic slitting with optical sensor
- Inkjet module for variable data
- Lamination station (self wound with liner)
- Non stop buffer for continuous run
- Pressure gauges for die cutting unit
- QR code reader for an automatic set up
- Razor slitting knives unit
- Rewinder unit for defects
- RFID and NFC Tag application
- Right to left configuration (depending on chosen optional)
- Smart sheeter & conveyor for sheet label production
- Speed Pack Semi-rotary die cut up to 80m/min.
- Super Speed Pack for semi-rotary – over 100m/min.
- Turn bar – fixed or movable
- Turret rewinding – semi-automatic with gap stop position
- Video inspection system
- Waste rewinder unit from unwinder
- Web cleaner
Key Benefits
A fully configurable machine that combines advanced inspection, slitting and rewinding, with the flexibility to integrate additional technologies according to the specific application.
- Configured to your production needs
- 100% inspection & quality control
- Optional variable data printing
- Die cutting & finishing options
Modular inspection & finishing
Die cutting
Label dispenser

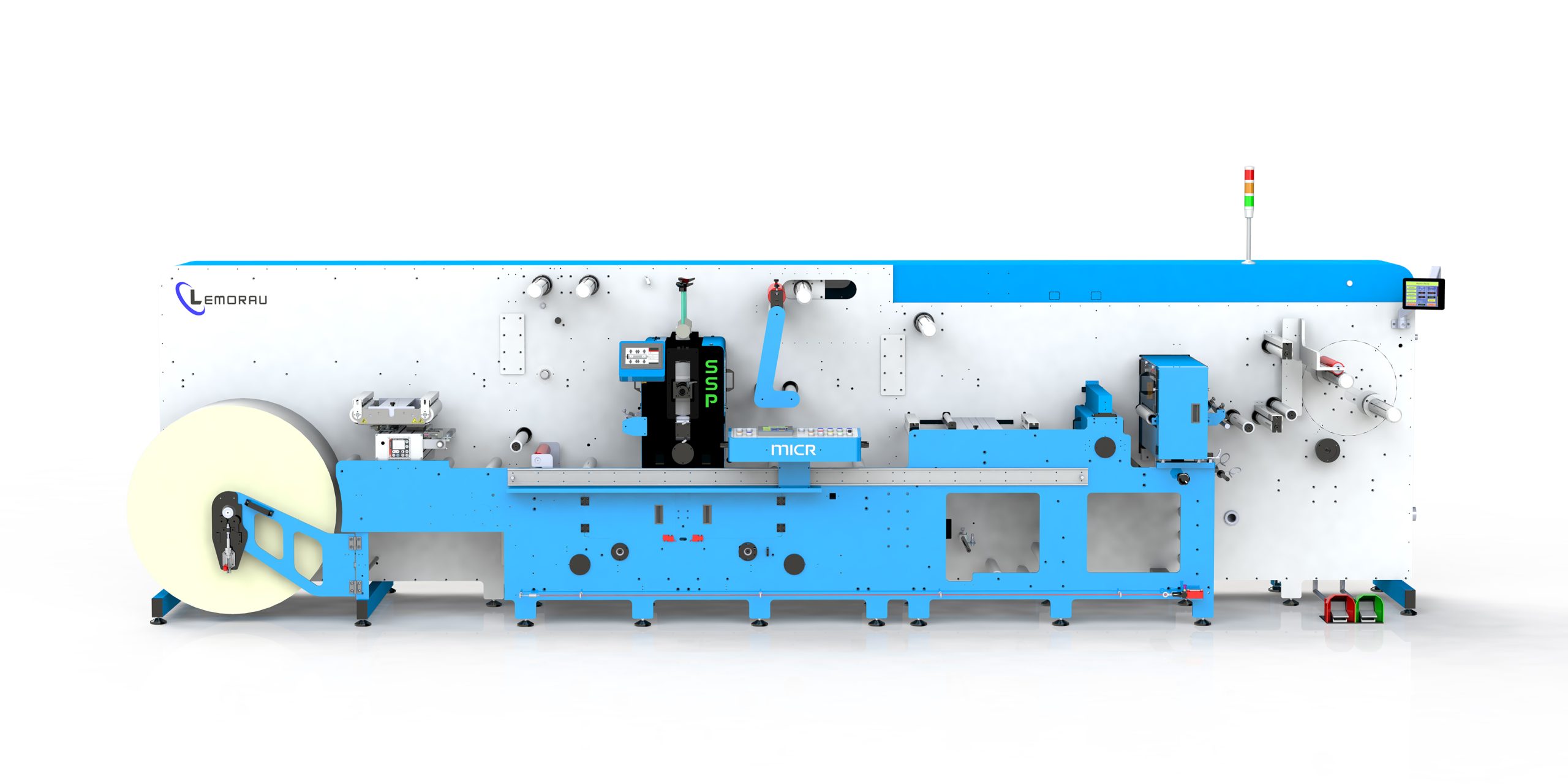

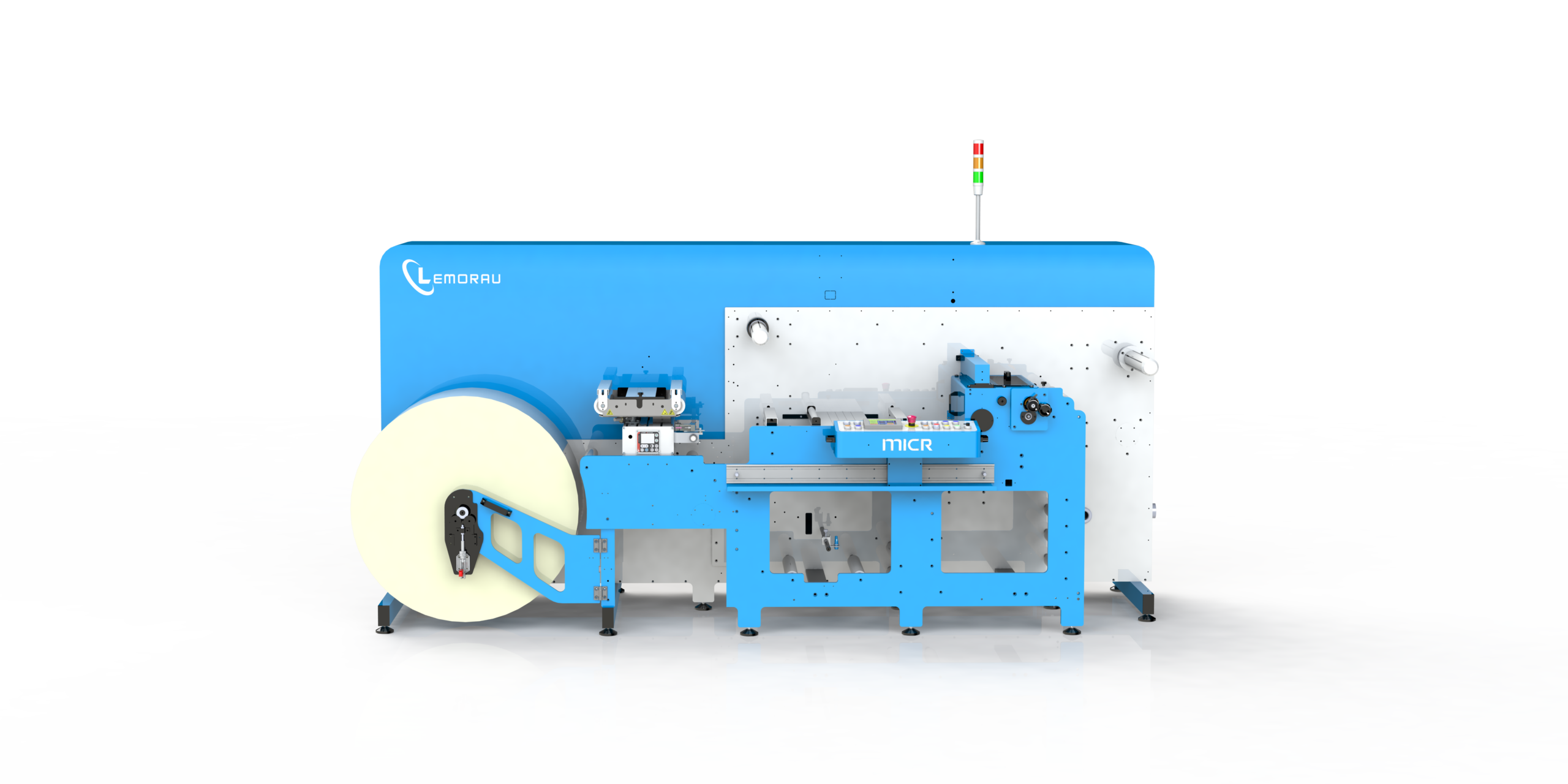

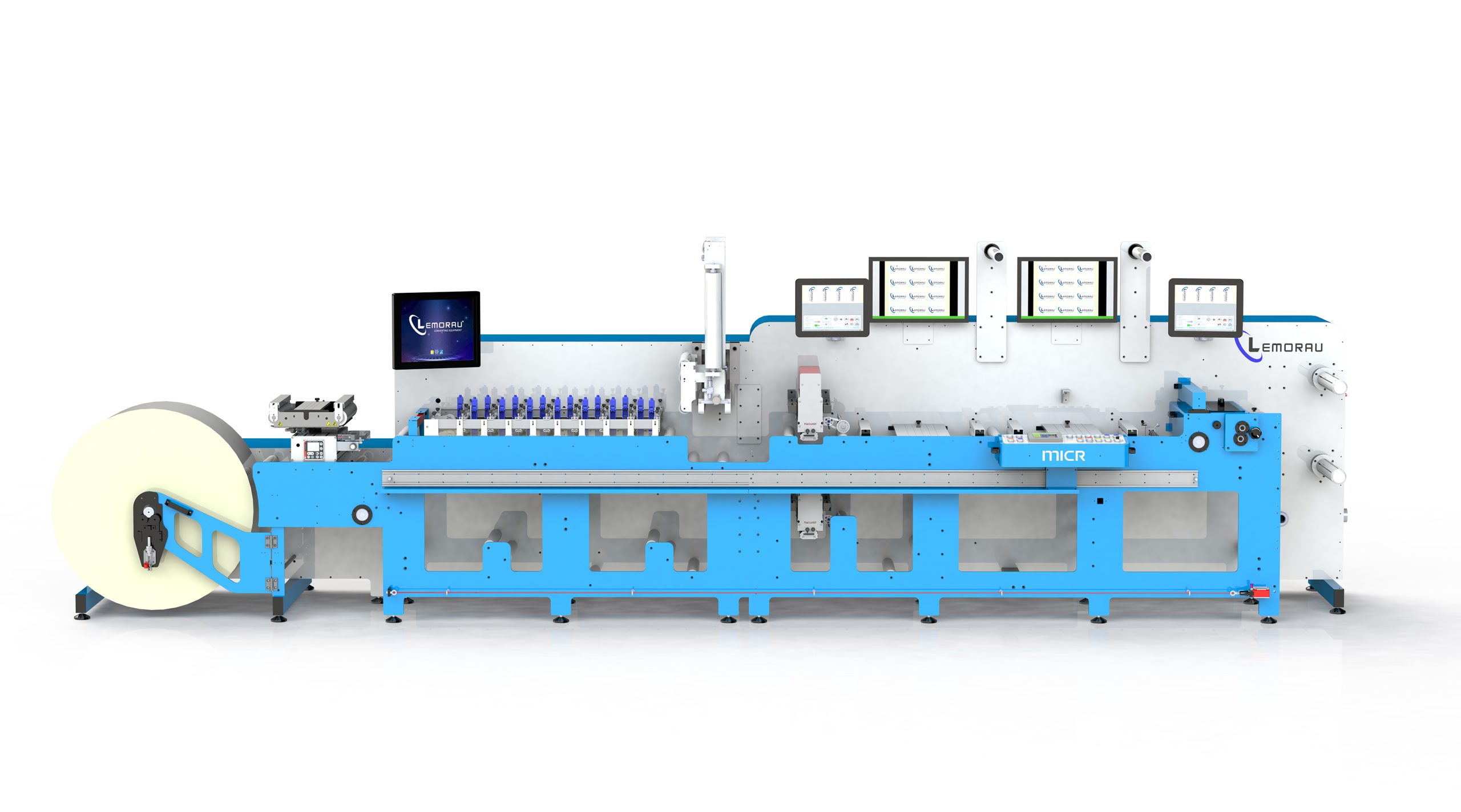

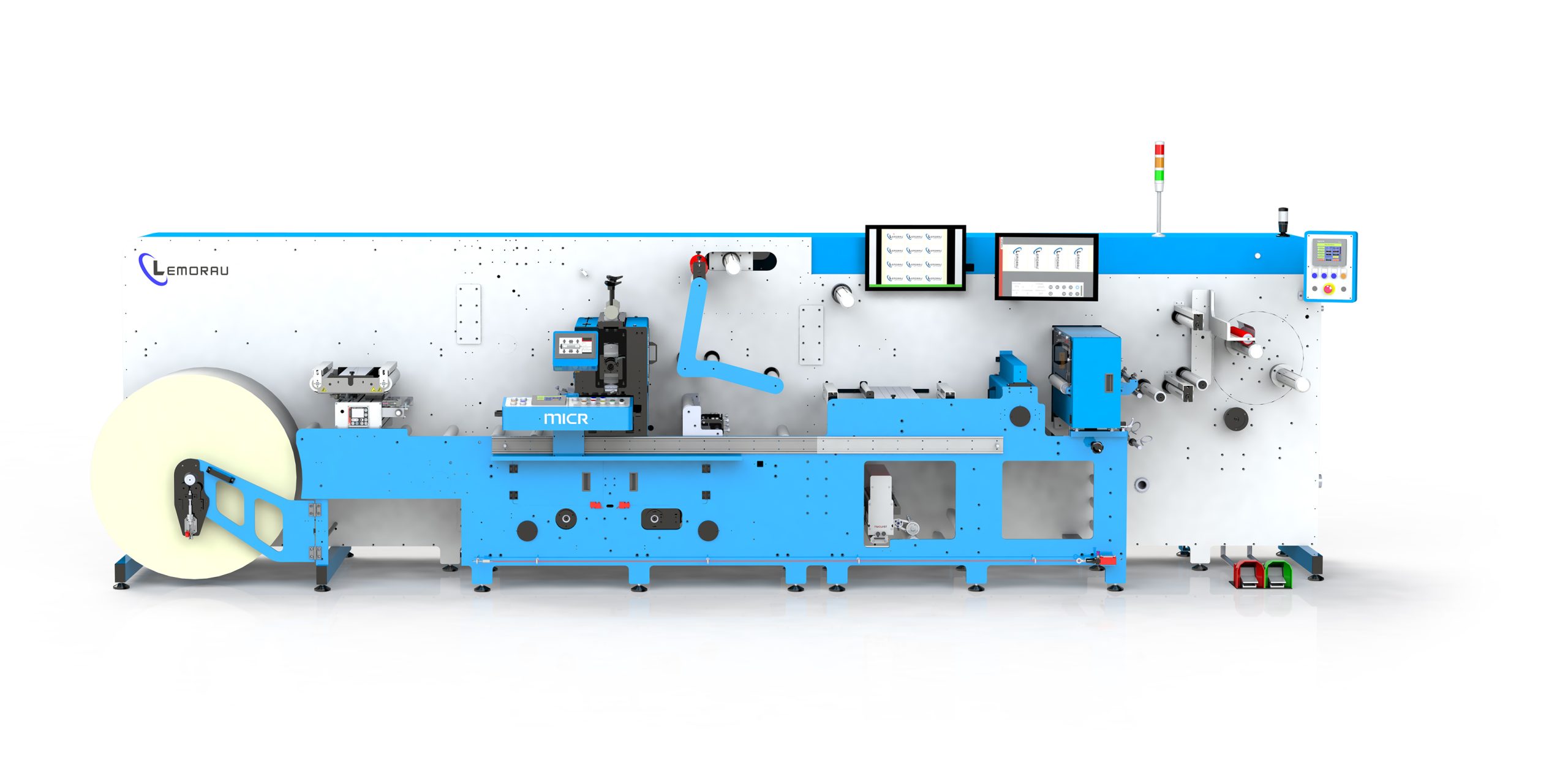

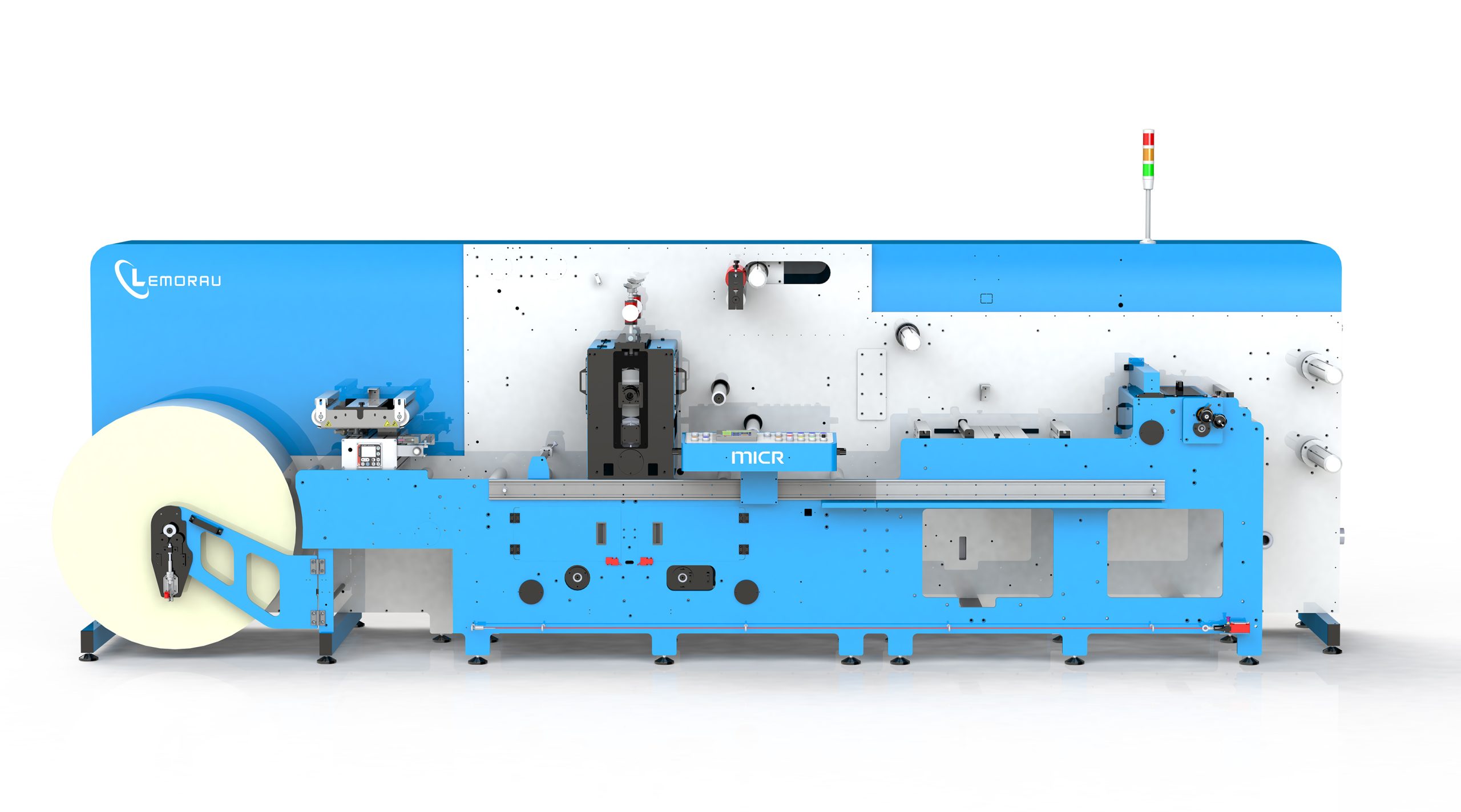

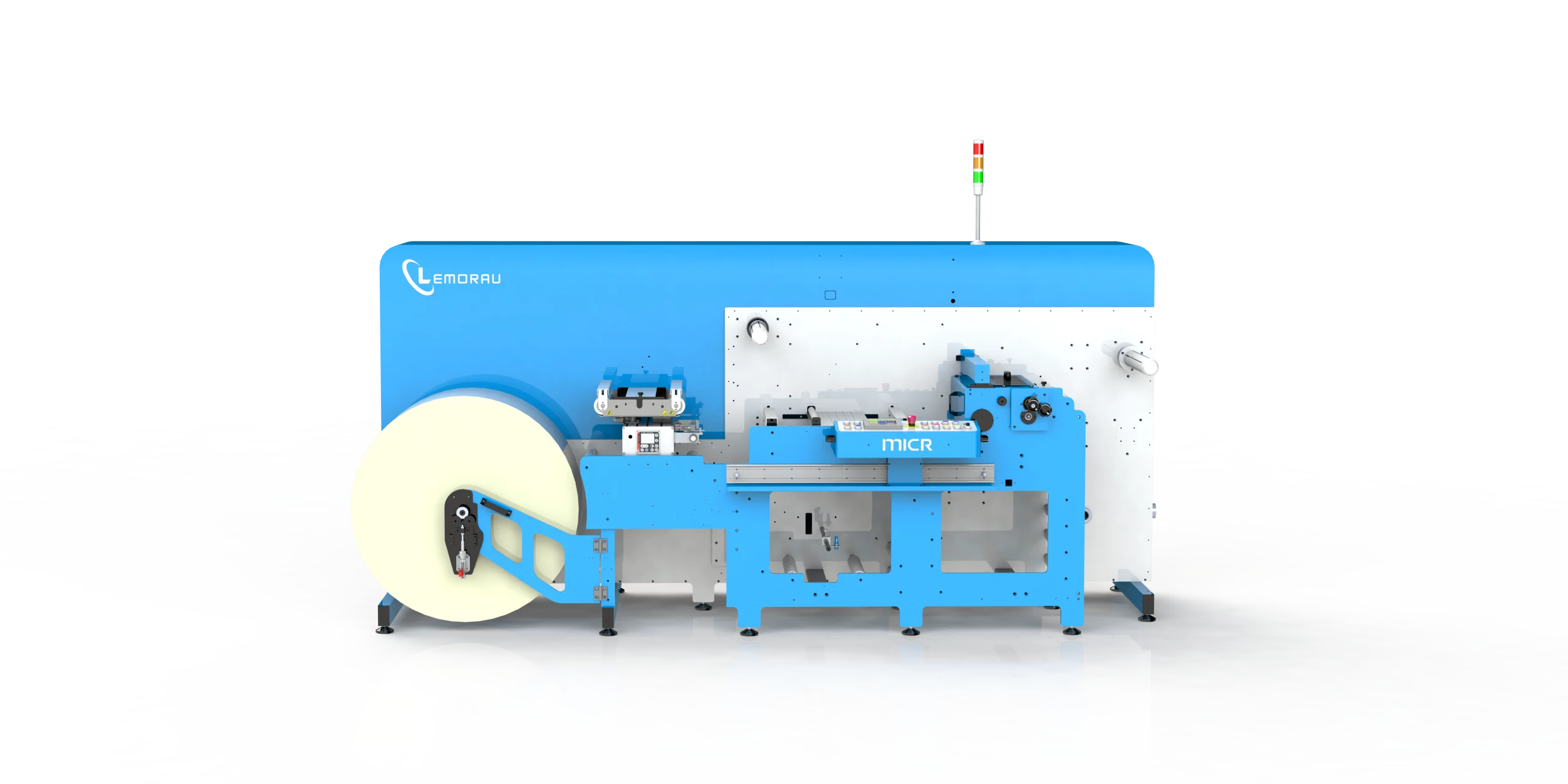

Possible Machine Configurations
