LEMORAU ICR3
Inspection, Slitter & Rewinder
Overview
Standard Features
Optional Equipment
Overview
Overview
Lemorau ICR3 inspection and slitter rewinder machine offers high working speed and excellent quality of finished rolls. Inspection can be made with a stroboscope, missing label detection system, or a 100% or 200% video inspection system. User-friendly software and quick job changes via job memory make ICR3 practical and easy to use.
Standard Features
Standard Features
- Web width 350, 450 mm (14, 18″)
- Maximum speed: 200 m/min. (656 ft/min.) – type of material can influence the speed
- 2 adjustable splice tables with pneumatic clamps
- Electronic Counter (Labels/ Meters/ Rolls/ Total meters and labels Counter / Information of actual diameter)
- Job memory for easy and quick job set ups
- Paper and matrix break detection
- QRC (Quick Remote Connection)- For fast and easy access to the machine remotely
- Automatic web tension control system by servo motors – Constant and Taper tension
- Reverse jog
- Flag detection sensor
- Multi language HMI touch screen
- Electrical supply according to destination country (no need of transformers)
- CE conformity certificated, user manual and electrical scheme
UNWINDER
- Servo driven with max. Ø 700 mm (27,5″)
- Pneumatic shaft ID 76mm (3″)
- Automatic stop at master roll end with programmable end of roll function
- Clockwise/counterclockwise unwinding
- Electronic web guide system with ultrasonic sensor which enables guiding of opaque and clear materials

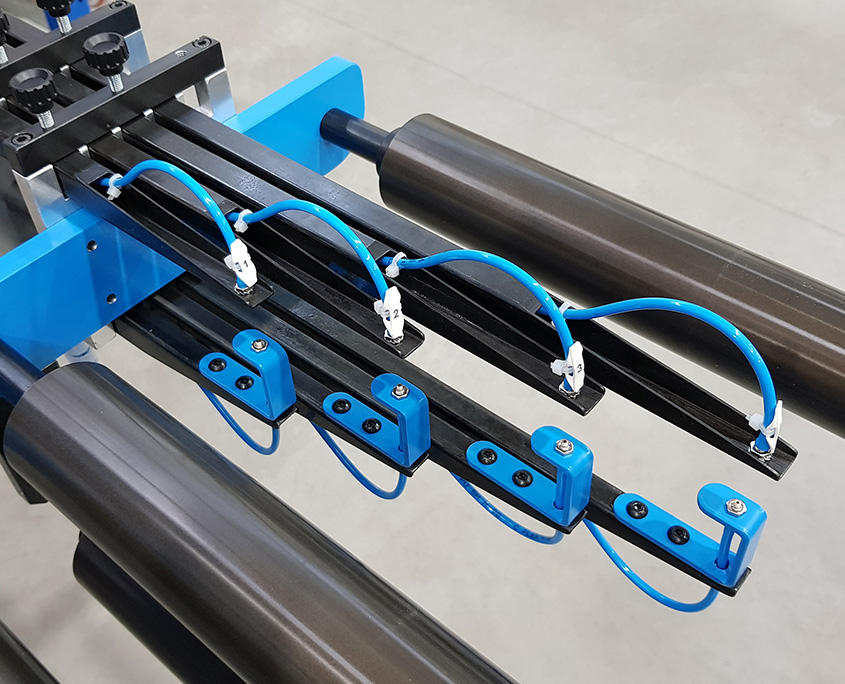

SLITTING UNIT
- Equipped with 6 sets of circular knives with lateral adjustment – Can be added more as optional
- Razor knives unit – as optional
- Air trim removal
REWINDING
- Servo driven interchangeable pneumatic rewinder – ID 76mm (3″)
- Clockwise/counterclockwise rewinding (labels in/ labels out)
- Max. rewinder Ø 500mm (20″) using single rewinder / 430mm (17″) using double rewinder optional
Optional Equipment
Optional Equipment
- Additional mandrels in customized sizes
- Additional slitting knives
- Clear on clear sensor
- Double rewinding
- Extra space for inkjet variable data
- Razor slitting knives
- Rewinder unit for defects
OPTIONAL INSPECTION SYSTEMS
- Missing label detection

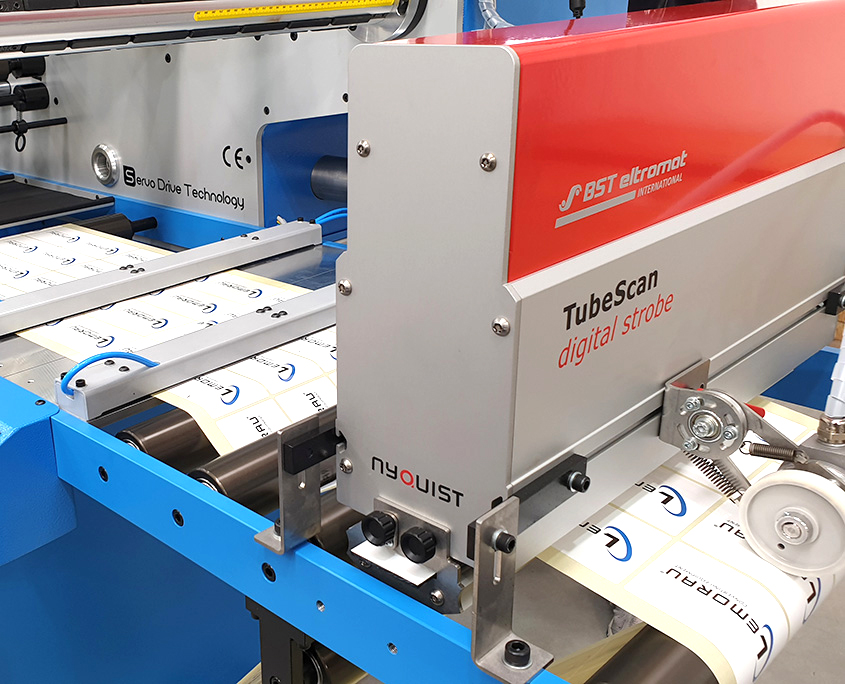

- Stroboscope (synchronized with rewinding speed)

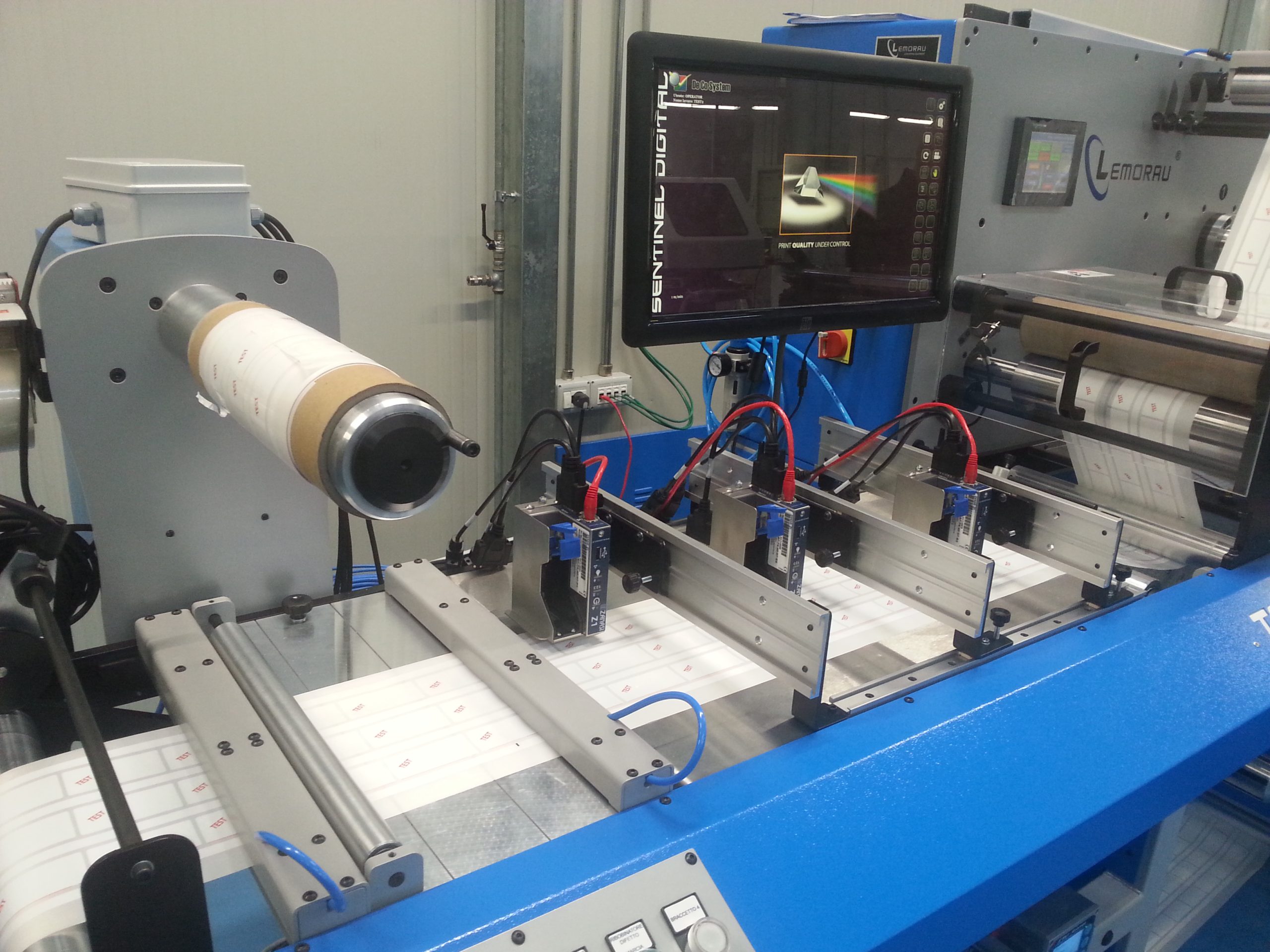

- Video inspection
Key Benefits
A compact, high-performance Inspection Slitter Rewinder built for high-volume production with precision and reliability.
- Compact design
- High-productivity production
- Excellent finished roll quality
- Smart job memory & quick set-ups
