Overview

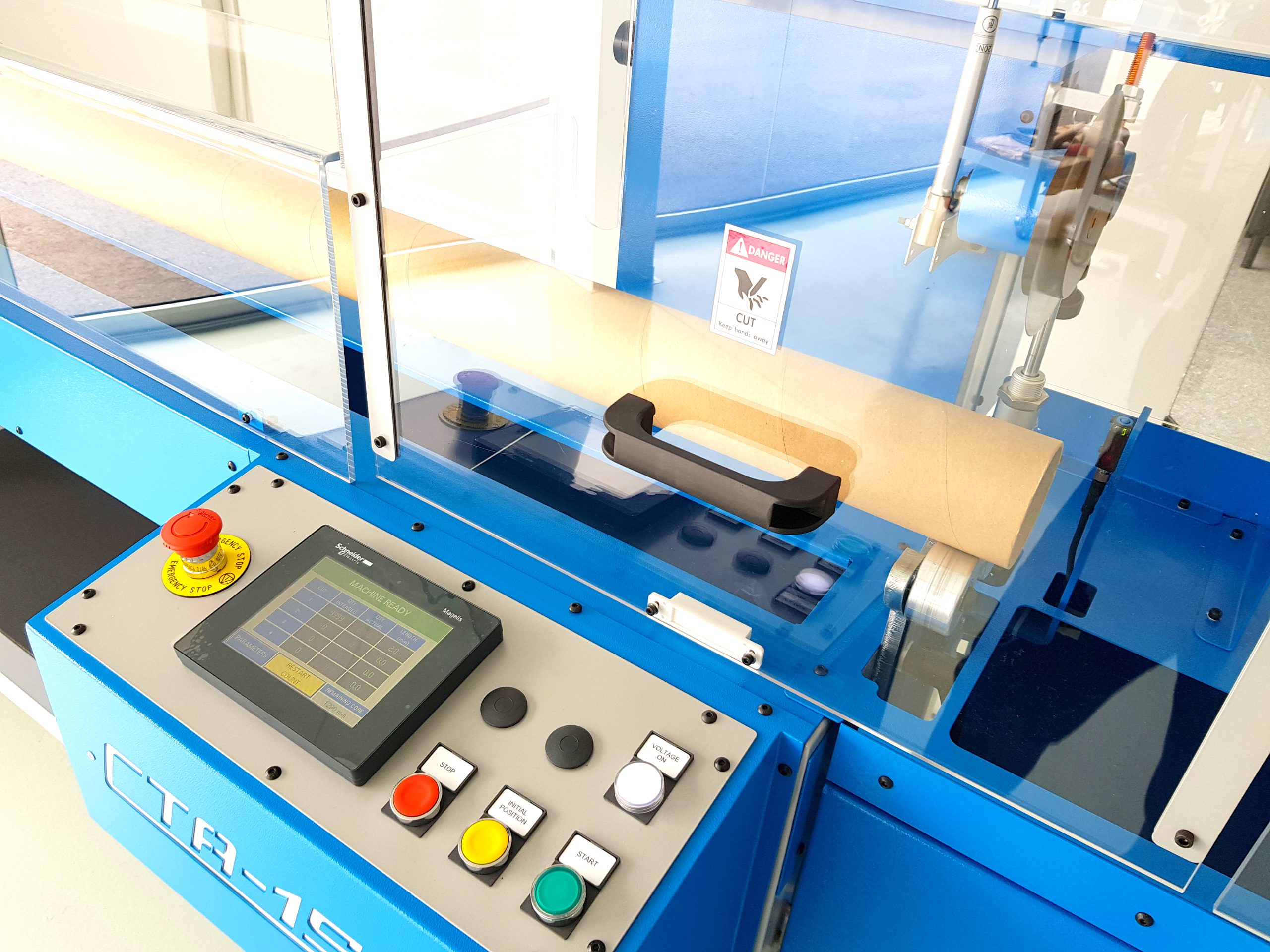

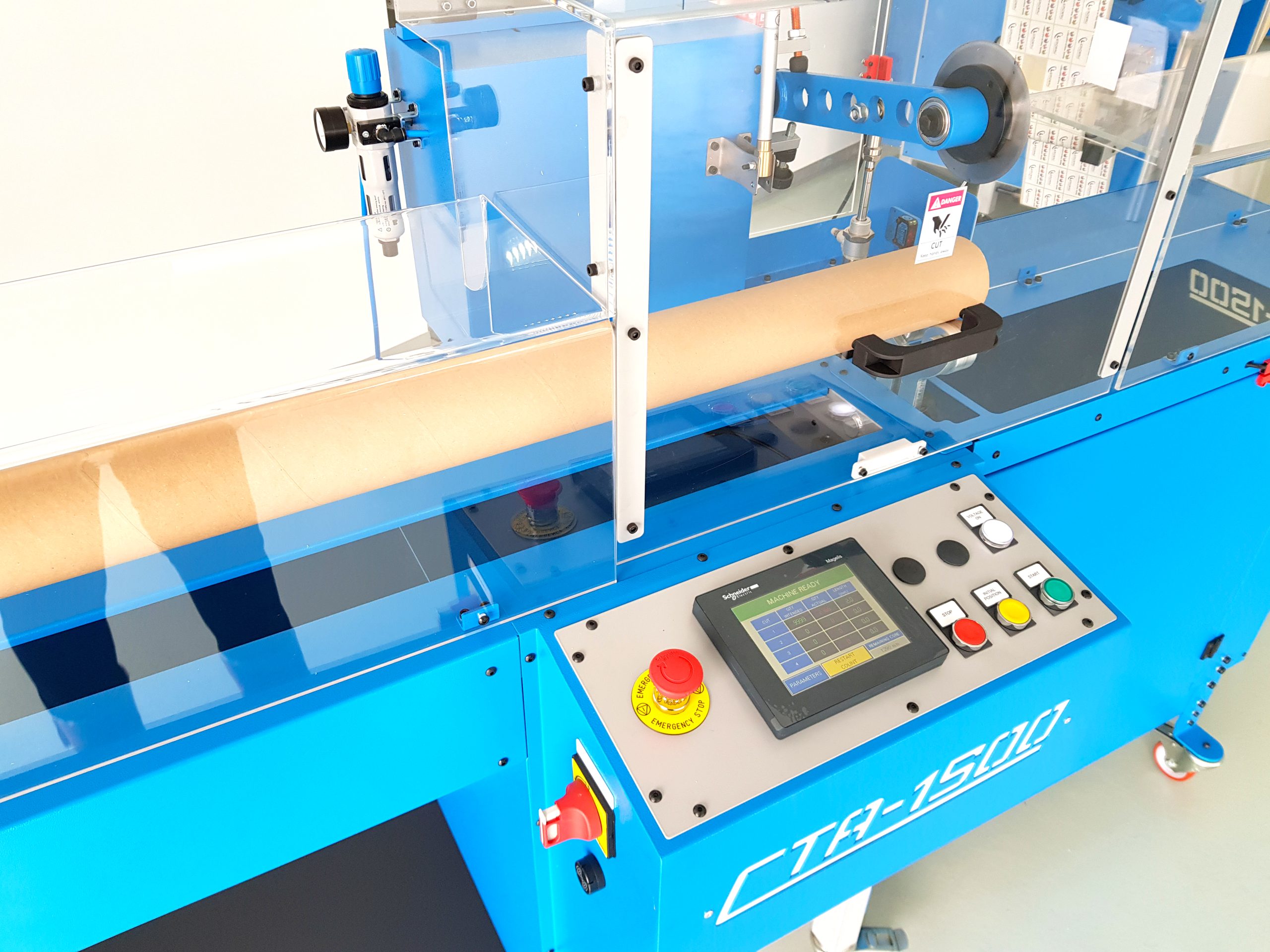

Lemorau CTA 1500 is an automatic core cutter machine. Its function is cutting cores in a desired measure over its total length and in a selected quantity. Built with heavy-duty components to exact specifications, it produces perfectly cut cores fast and accurately for years to come.

Standard Features

• Maximum core length 1500 mm (59″)
• Ready to cut core Ø from 25 to 152mm (from 1 to 6″)
• Standard core diameters: 25, 40, 50, 76 mm (1″, 1.57″, 2″, 3″)
• Simple or multiple cut length from a single parent core (up to 4 different lengths)
• Automatic core length measurement
• User-friendly software
• Multi language HMI touch screen
• Core positioning by servo motor
• Core edge trim function
• Optimized core cuts
• Quick and simple core diameter change
• Total cores counter
• Electrical supply according to destination country (no need of transformers)
• CE conformity certificated, user manual and electrical scheme

CORE DIAMETERS

• Standard: 25, 40, 50, 76 mm (1″, 1.57″, 2″, 3″)
• Other diameters upon request

EQUIPED WITH

• 1 blade
• Core attachment with 4 diameters in one piece: 25, 40, 50, 76 mm (1″, 1.57″, 2″, 3″)
• 4 nylon sleeves ID: 25, 40, 50, 76 mm (1″, 1.57″, 2″, 3″)

Optional Equipment

• Additional core diameters up to 152 mm (6″)
• QRC (Quick Remote Connection) – For fast and easy access to the machine remotely
• Thickness pack (allows to cut up to 15 mm core thickness)
• Plastic core cutting
• 2 meters core length
• Support for cutting long tubes
