LEMORAU EBM
Table Top Die Cutter For Blank Labels
Overview
Standard Features
Optional Equipment
Overview
Overview

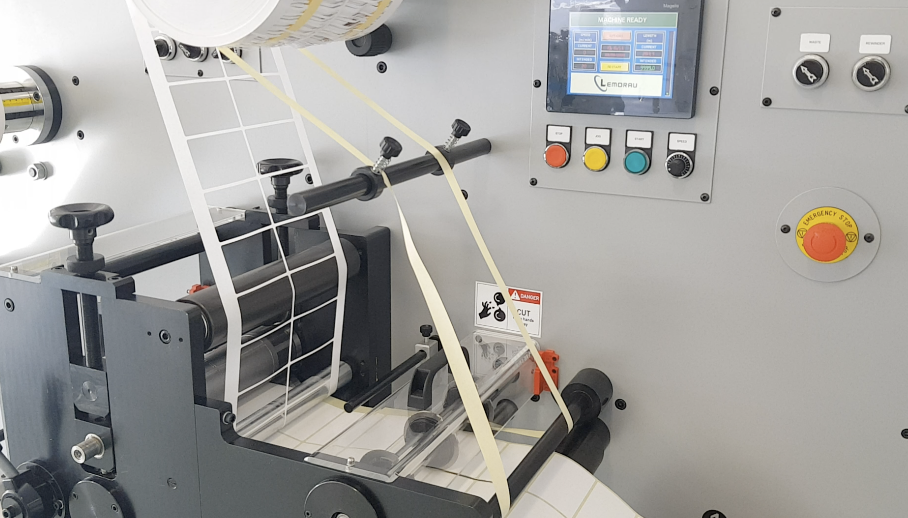

Lemorau EBM is a table top die cutting machine, cost effective and simple to use for blank labels production. Compact size and sturdy with a short web path which minimizes set-up waste. Lemorau EBM is capable of die cutting, slitting and rewinding with maximum speed up to 120 m/min. (398 ft/min.)
Standard Features
Standard Features
- Web width 250, 330 mm (10, 13″)
- Maximum speed: 120 m/min. (398 ft/min.)
- Electronic Counter (Labels/ Meters)
- Variable web tension control
- Multi language HMI touch screen
- Electrical supply according to destination country (no need of transformers)
- CE conformity certificated, user manual and electrical scheme
UNWINDER
- Max. diameter 450 mm (18″)
- Pneumatic shaft ID 76mm (3″)
- Splice table with pneumatic clamps

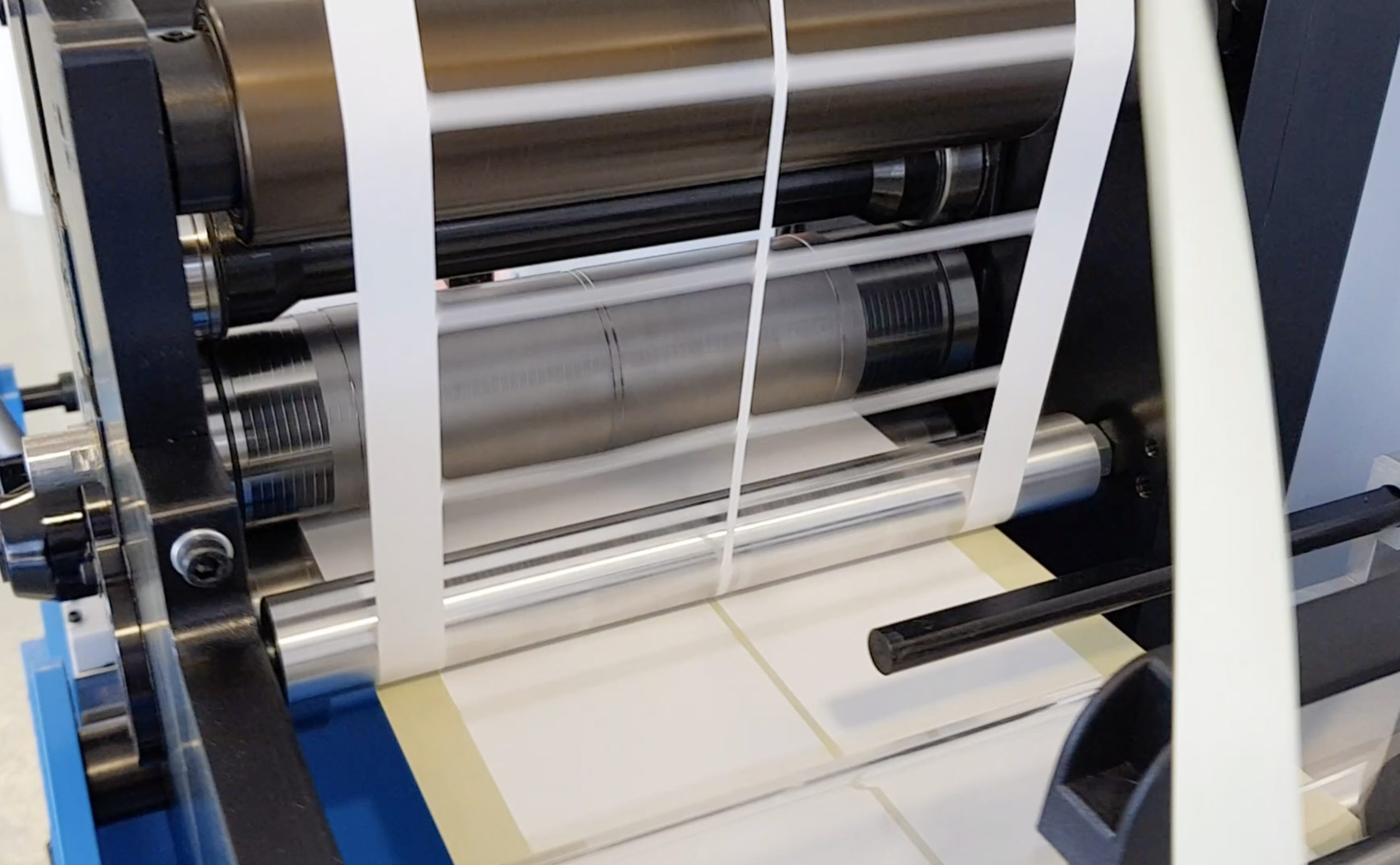

DIE CUTTING
- Operates in full Rotary
- Standard gears for magnetic cylinders are 1/8 CP, straight teeth, angle 20 degrees
- Die repeats: min. 203,20 mm (8″) – max. 431,80 mm (17″)
- Pneumatic waste rewinder max. Ø 450mm (18″)
SLITTING UNIT
- Equipped with 3 sets of circular knives with lateral adjustment – Can be added more as optional
REWINDING
- 1 interchangeable pneumatic shaft ID 76 mm (3″)
- Clockwise/counterclockwise rewinding (labels in/ labels out)
- Max. rewinder Ø 360 mm (14″)
Optional Equipment
Optional Equipment
- Additional mandrels in customized sizes
- Additional slitting knives
- Clear on clear sensor
- Electronic web guide system
- QRC (Quick Remote Connection)
- Work bench
Key Benefits
A compact and efficient solution for producing blank labels, designed for short runs, small jobs and flexible on-demand production.
- Compact & space-saving
- Simple & intuitive operation
- Runs at 120 m/min.
- Variable web tension control
