LEMORAU EBRM+
Table Top Digital Finishing Machine
Overview
Standard Features
Optional Equipment
Overview
Overview

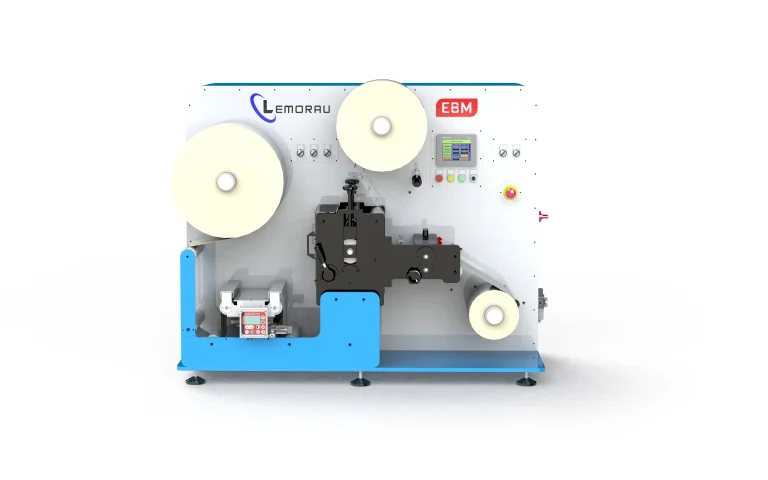

Lemorau EBRM+ is an affordable table-top digital finishing machine that coats, die cuts, slits and rewinds digital printed webs. An electronic feeder roll lets it run in-line with a digital press or offline. Its die cutting unit runs in full or semi-rotary modes with electronically controlled web tension and no air required.
Standard Features
Standard Features
- Web width 250, 330 mm (10, 13″)
- Maximum rotary speed: 80 m/min. (262.4 ft/min.) – Die cutting to register
- Maximum semi-rotary speed: 25 m/min. (82 ft/min.) Die cutting to register (dependent on plate size)
- Electronic labels and meters counter
- Job memory for easy and quick job set ups
- Automatic web tension control
- Electronic sensors to start, stop, move faster and move slower while working in line
- Multi language HMI touch screen
- QRC (Quick Remote Connection)- For fast and easy access to the machine remotely
- Electrical supply according to destination country (no need of transformers)
- CE conformity certificated, user manual and electrical scheme
UNWINDER
- Shaft ID 76mm (3″)
- Max. diameter 450mm (18″)
- Clockwise/counterclockwise unwinding
- Electronic web guide system with ultrasonic sensor which enables guiding of opaque and clear materials
- Splice table
LAMINATION
- 1 Self wound lamination unwinder shaft with max. diameter 300mm (12″)
- Lamination shaft ID 76mm (3″)
DIE CUTTING
- Operates in full Rotary or Semi-rotary modes
- Die repeats in Rotary Mode: min. 203,20 mm (8″) – max. 431,80 mm (17″)
- Recommended die repeat in Semi-Rotary Mode (magnetic cylinder included Z130 1/8″): 82,55- 330,20 mm (3,25 – 13″)
- Servo driven buffer
- Deflation function for existing flexible dies in semi-rotary mode
- Waste rewinder shaft ID 76mm (3″)
- Waste max. diameter 450mm (18″)
SLITTING UNIT
- Equipped with 6 sets of circular knives with lateral adjustment – Can be added more as optional
REWINDING
- 1 rewinder shaft with max. diameter 360mm (14″)
- Shaft ID 76mm (3″) – minimum ID possible to use is 40mm (1.57″)
- Clockwise and counterclockwise rewinding
Optional Equipment
Optional Equipment
- Additional slitting knives
- Clear on clear sensor
- In feed tension system to work in line with flatbed, semi-rotary and screen machines
- Pneumatic air shafts
- Work bench
Key Benefits
A compact and versatile finishing solution for digitally printed webs, ideal for short runs, small jobs and auxiliary production.
- Compact & space-saving
- Cost-efficient for short runs
- Laminating, die cutting, slitting & rewinding
- Online or offline operation
