Overview

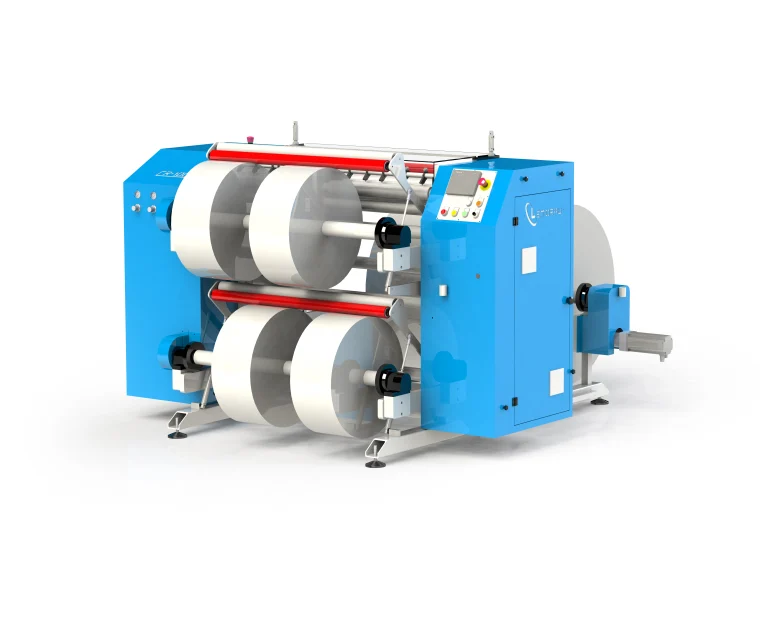

Lemorau CR is a high-speed, compact slitter rewinder equipped with servo motors for superior material tension control and machine performance, available with a wide range of optional equipment.

Standard Features

• Web width 330, 450 mm (13″, 18″)
• Maximum speed: 200 m/min. (656 ft/min.) – type of material can influence the speed
• Electronic Counter (Labels/ Meters/ Rolls/ Total meters and labels Counter / Information of actual diameter)
• Job memory for easy and quick job set ups
• Paper break detection
• Automatic web tension control system by servo motors – Constant and Taper tension
• QRC (Quick Remote Connection) – For fast and easy access to the machine remotely
• Multi language HMI touch screen
• Electrical supply according to destination country (no need of transformers)
• CE conformity certificated, user manual and electrical scheme

UNWINDER

• Servo driven with max. Ø 700 mm (27,5″)
• Pneumatic shaft ID 76mm (3″)
• Automatic stop at master roll end with programmable end of roll function
• Clockwise/counterclockwise unwinding
• Adjustable splice table with pneumatic clamps
• Electronic web guide system with ultrasonic sensor which enables guiding of opaque and clear materials

SLITTING UNIT

• Equipped with 6 sets of circular knives with lateral adjustment – Can be added more as optional
• Air trim removal

REWINDING

• Servo driven equipped with 1 interchangeable pneumatic rewinder
• Pneumatic shaft ID: 76mm (3″)
• Clockwise/counterclockwise rewinding (labels in/ labels out)
• Semi-automatic rewinding (when having optional double rewinder)
• Max. rewinder Ø 500mm (19.6″) on each shaft

Optional Equipment

• Additional mandrels in customized sizes
• Additional slitting knives
• Anti-static bar
• Clear on clear sensor
• Double Rewinder
• Full automatic slitting with optical sensor
• Modular unwinder Ø 1meter (40″)
• Razor slitting knives
• Waste rewinder
