Overview

Lemorau CRL is a finishing machine built to run in-line with a semi-rotary or flatbed printing machine. A buffer box with electronic sensors keeps both machines in perfect sync, while the vacuum table and guide systems keep the web tensioned and stripped for a clean, precise cut.

Standard Features

• Web width 250, 330, 400 mm (10, 13, 16″)
• Maximum speed: 100 m/min. (328,08 ft/min.)
• Electronic Counter (Labels/ Meters/ Rolls/ Total meters and labels Counter / Information of actual diameter)
• Job memory for easy and quick job set ups
• Paper and matrix break detection
• Automatic web tension control system by servo motors – Constant and Taper tension
• Air trim removal
• Vacuum table
• Buffer box with electronic sensors
• Foot pedal to jog the machine
• Multi language HMI touch screen
• Electrical supply according to destination country (no need of transformers)
• CE conformity certificated, user manual and electrical scheme

WASTE REWINDER

• Servo driven pneumatic shaft ID 76mm (3″)
• Max. waste rewinder Ø 450 mm (18″)

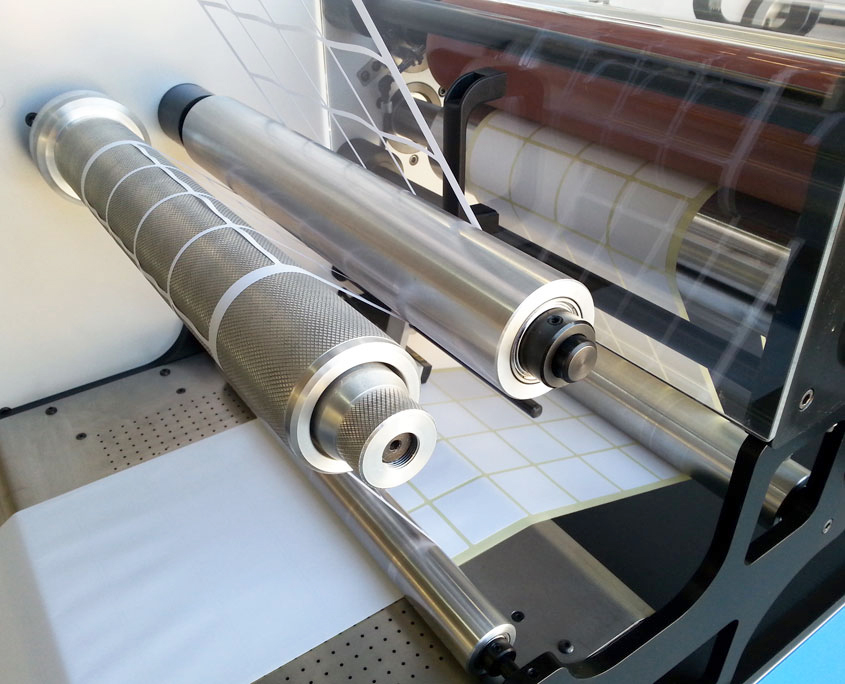

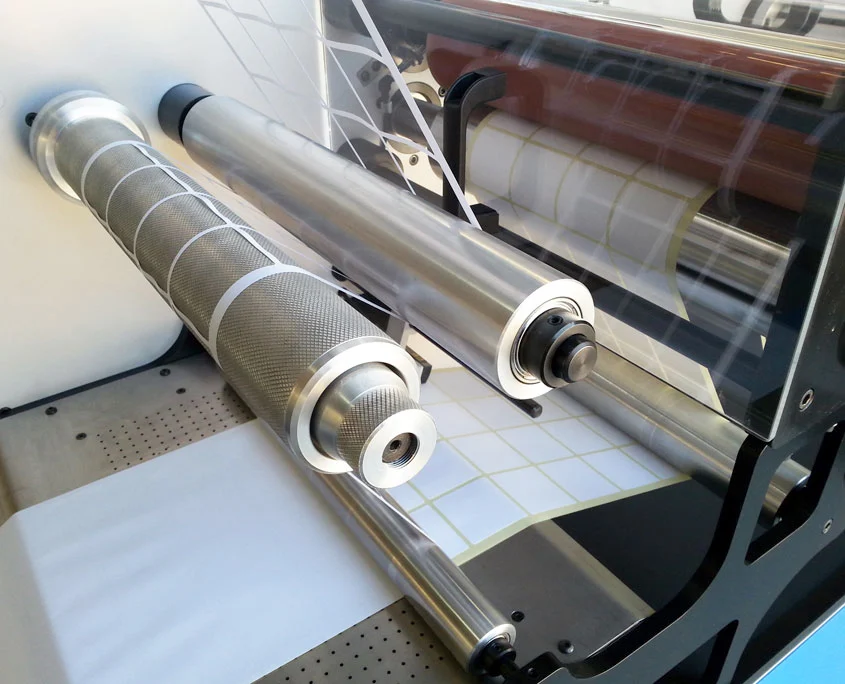

SLITTING UNIT

• Equipped with 6 sets of circular knives with lateral adjustment – Can be added more as optional
• Razor knives unit – as optional

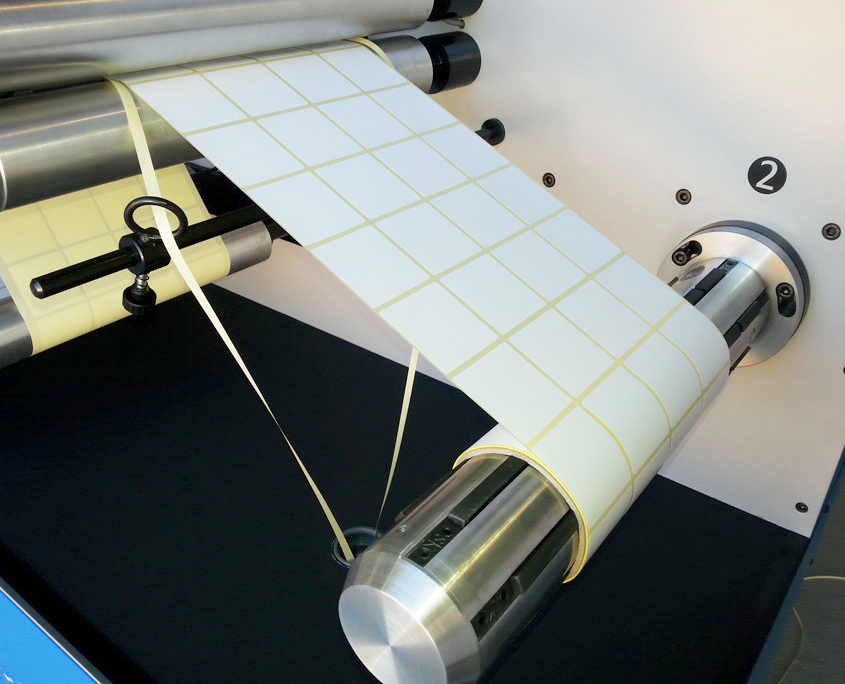

REWINDING

• Servo driven equipped with 1 interchangeable pneumatic rewinder
• Shaft ID: 76mm (3″)
• Semi-automatic rewinding (when having optional double rewinder)
• Clockwise/counterclockwise rewinding (labels in/ labels out)
• Max. rewinder Ø 450 mm (18″) using single rewinder / 350mm (14 “) using double rewinder

Optional Equipment

• Additional mandrels in customized sizes
• Additional slitting knives
• Clear on clear sensor
• Left to right & right to left configuration
• QRC (Quick Remote Connection) – For fast and easy access to the machine remotely
• Razor slitting knives
