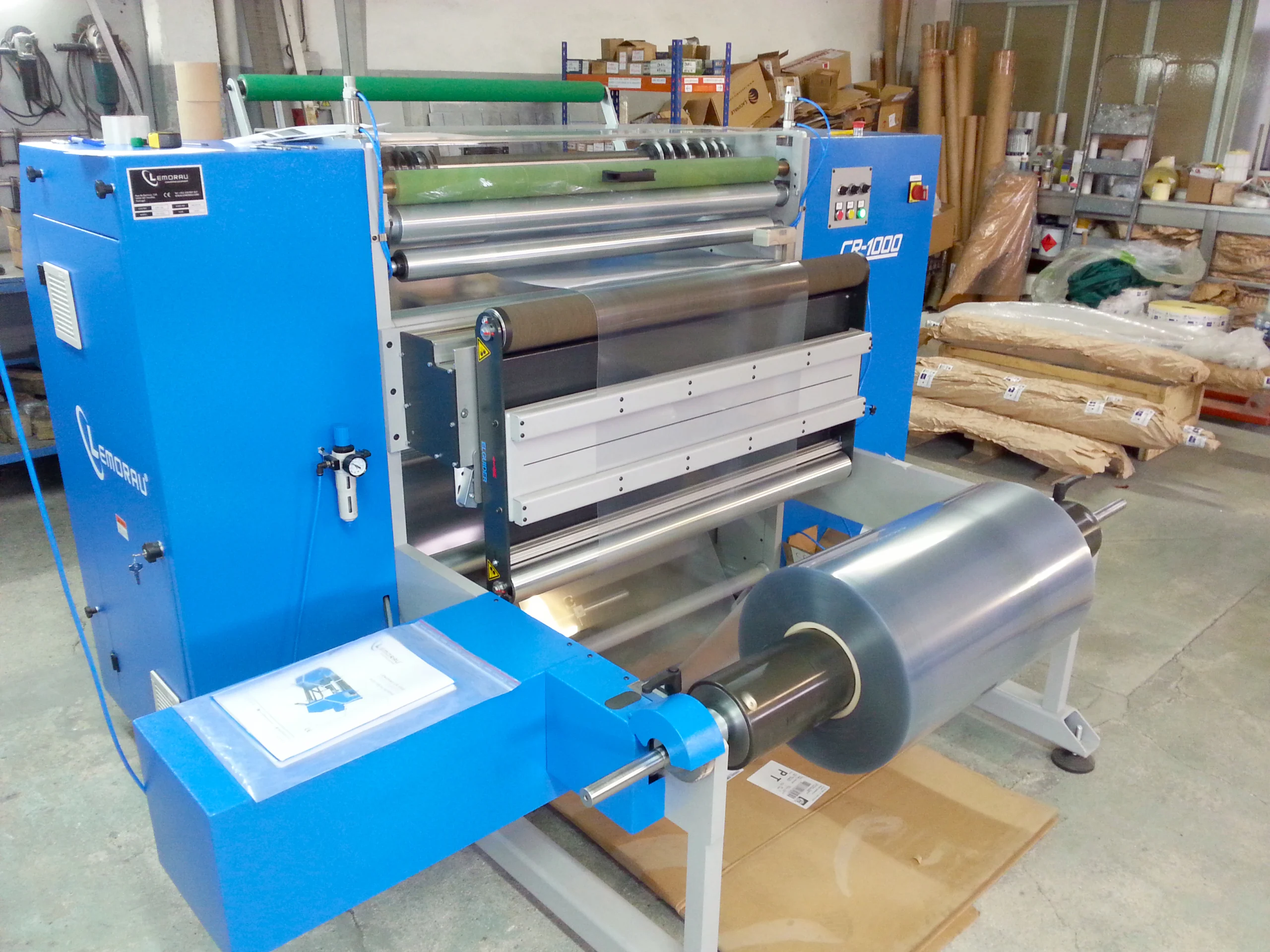

Overview

Lemorau CR1000/1500 is a compact, affordable and simple-to-use machine for slitting and rewinding substrates from a 1000mm (39.3″) or 1500mm (59″) master roll. Designed and built in-house, it can be customized to customer needs, with fully independent, adjustable tensions on every rewinder and unwinder.

Standard Features

• Web width 1000mm (40″) or 1500mm (59″)
• Maximum speed: 150 m/min. (492ft/min.) – type of material can influence the speed
• Electronic counter (Meters/Total meters/Rolls counter)
• 250 Job memory for easy and quick job set ups
• Paper break detection
• QRC (Quick Remote Connection) – For fast and easy access to the machine remotely
• Automatic web tension control system by servo motors – Constant and Taper tension
• Pneumatic nip roller
• Multi language HMI touch screen
• Electrical supply according to destination country (no need of transformers)
• CE conformity certificated, user manual and electrical scheme

UNWINDER

• Servo driven with max. Ø 1000 mm (40″) for width 1000mm & 1200 mm (47,2″) for width 1500mm
• Pneumatic shaft ID 76mm (3″)
• Automatic stop at master roll end with programmable end of roll function
• Clockwise/counterclockwise unwinding

SLITTING UNIT

• Equipped with 12 sets of circular knives – Can be added more as optional
• Razor knives unit – as optional

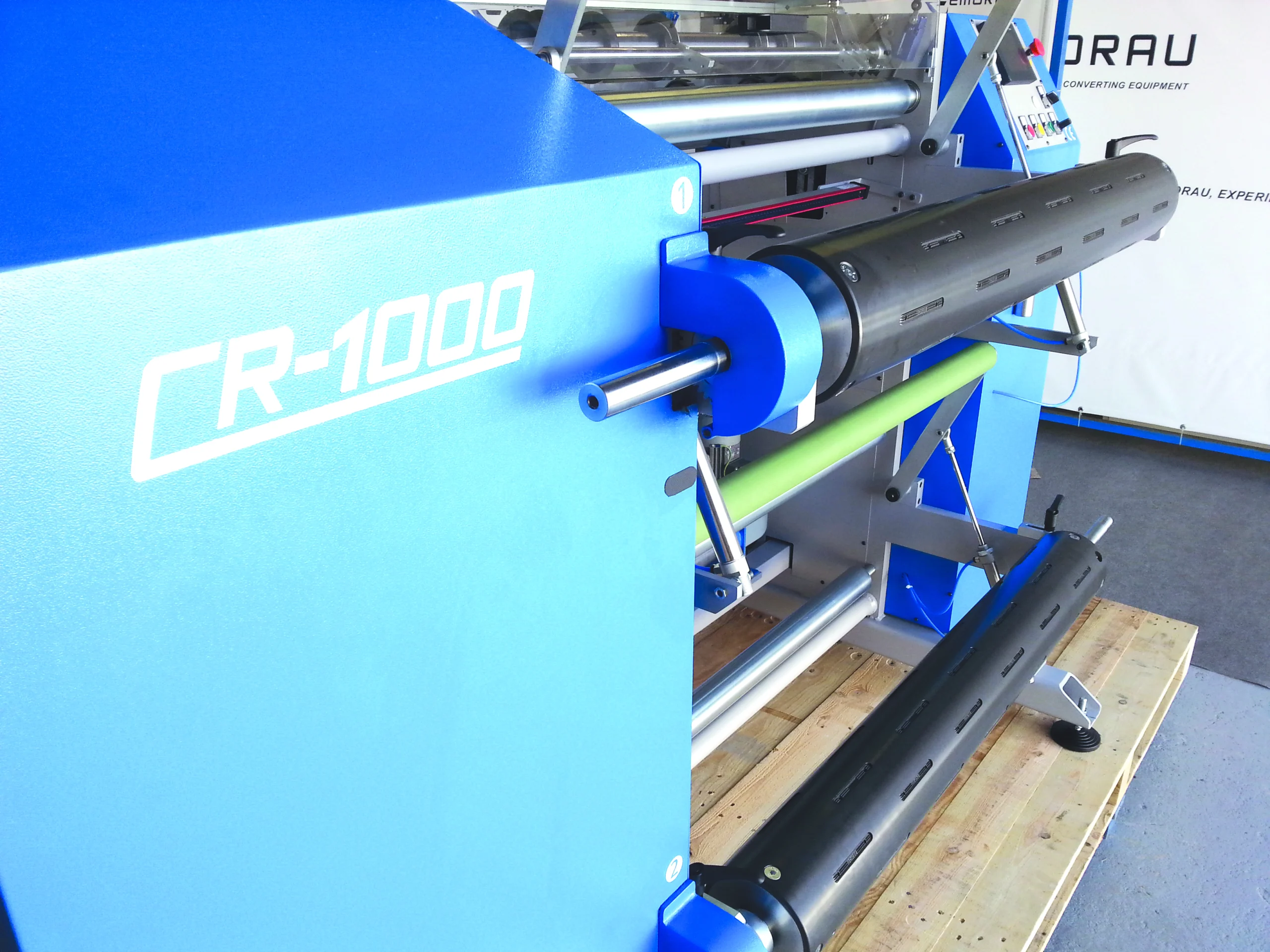

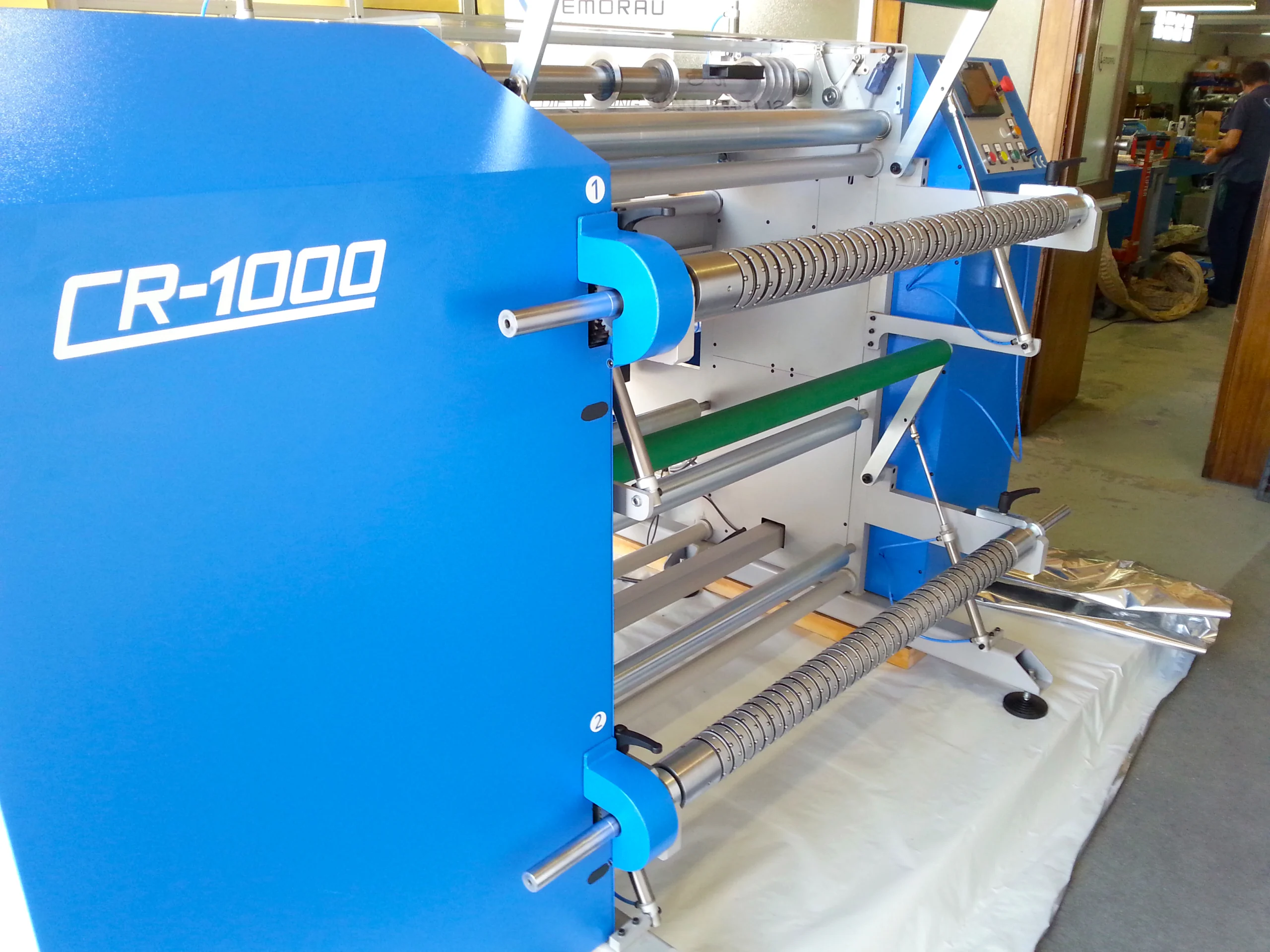

REWINDING

• Servo driven equipped with 2 pneumatic rewinders
• Pneumatic shafts ID: 76mm (3″)
• Clockwise/counterclockwise rewinding
• Max. rewinder Ø 600 mm (24″) for width 1000mm & Ø 700mm (27.5″) for width 1500mm

Optional Equipment

• Additional slitting knives
• Air Drum of 6″
• Air shaft of 6″
• Air trim removal
• Anti-static bar
• Electronic web guide system with ultrasonic sensor which enables guiding of opaque and clear materials
• Friction shafts
• Lay on Rollers
• Razor slitting knives
