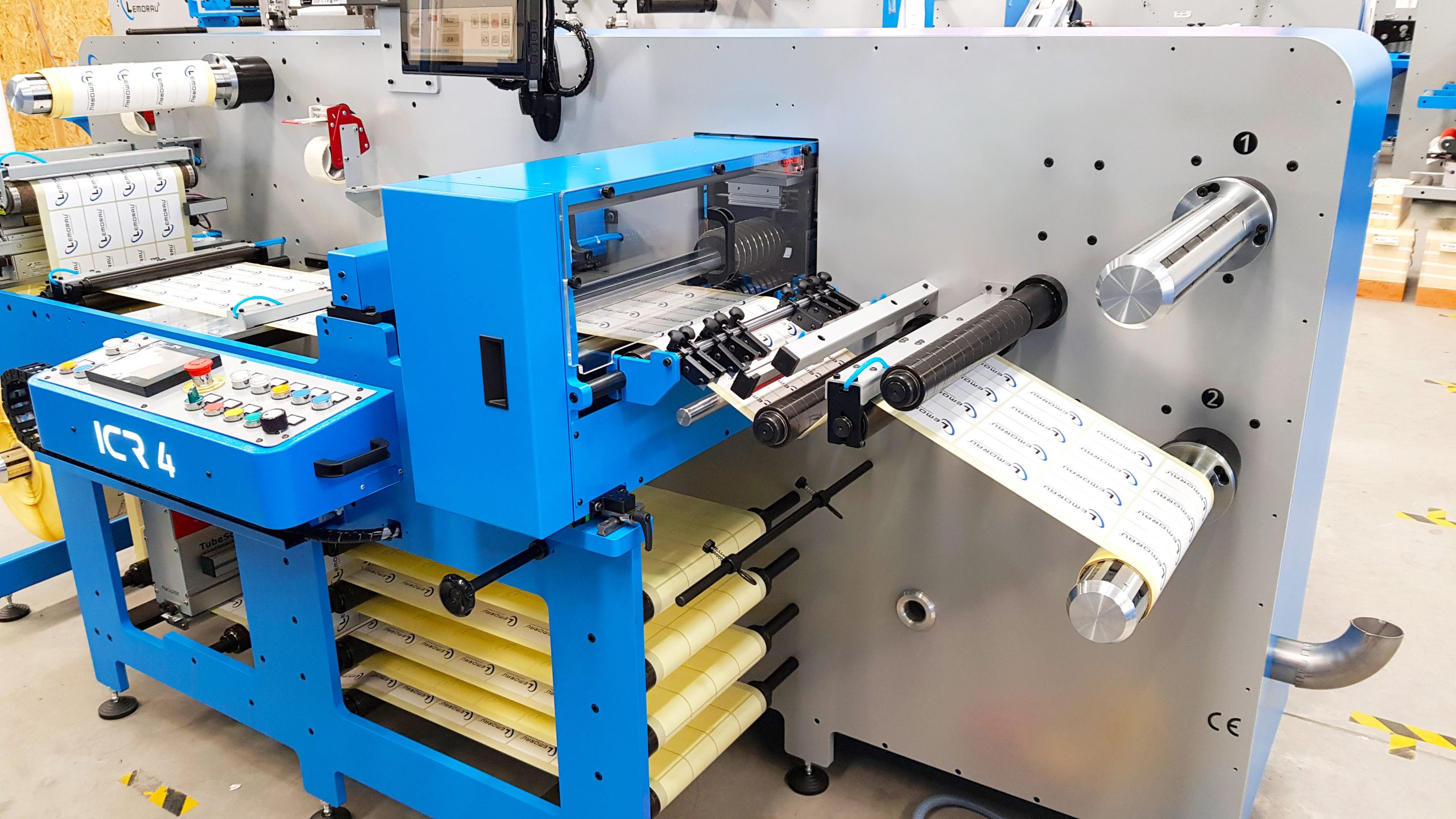

LEMORAU ICR4
Inspection, Slitter & Rewinder
Overview
Standard Features
Optional Equipment
Overview
Overview
Lemorau ICR 4 is built for exceptionally fast finishing, slitting and rewinding at up to 400 m/min. — or up to 250 m/min. with the optional video inspection system. Automatic positioning of slitting knives and job memory keep set-ups quick, backed by servo-controlled, independent tension on every shaft.
Standard Features
Standard Features
- Web width 350, 450 mm (14, 18″)
- Maximum speed: 400 m/min. (1312 ft/min.)(*)
- Maximum speed using Video Inspection: 250m/min. (820 ft/min.) – type of material can influence the speed

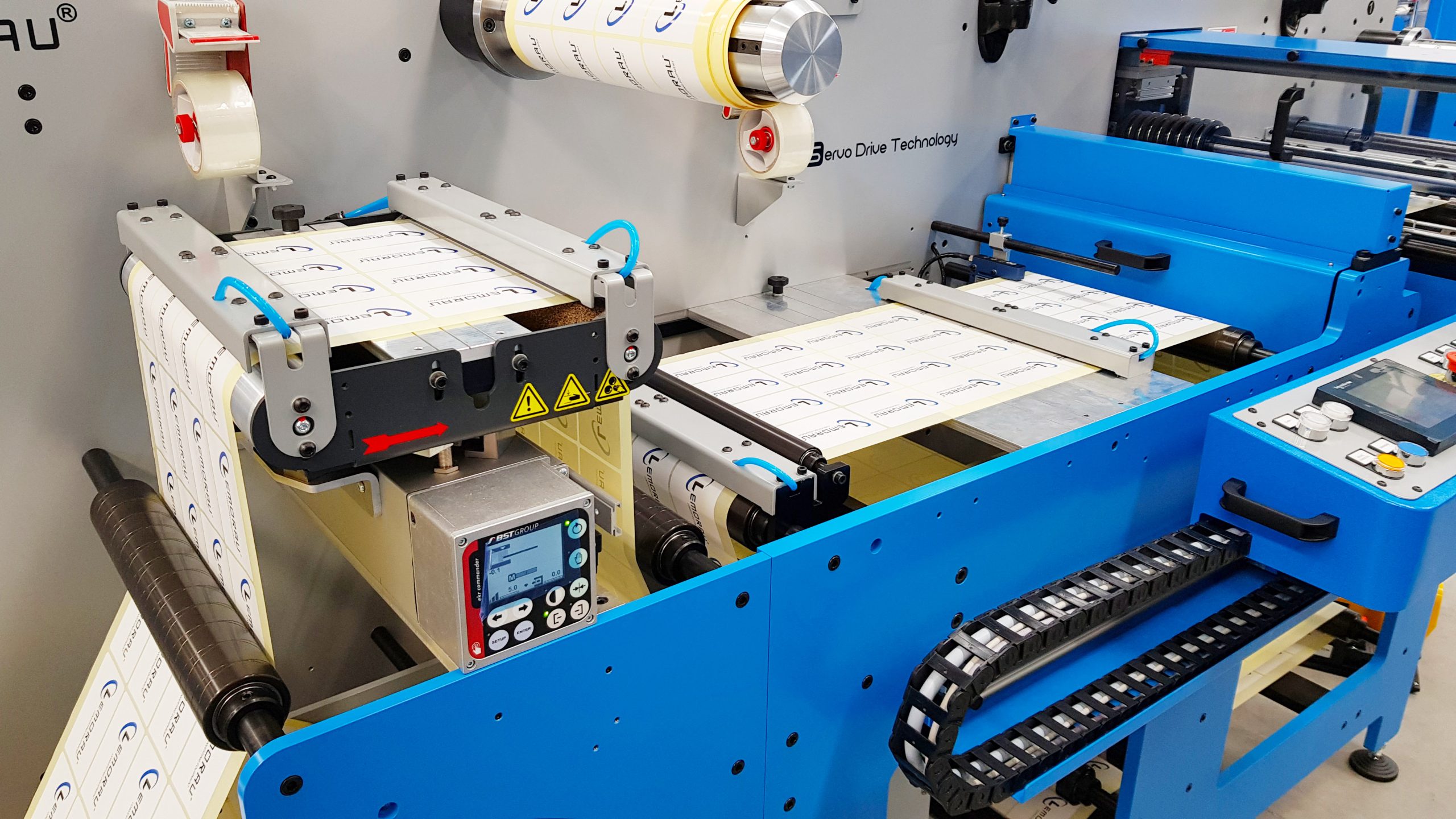

- 2 adjustable splice tables with pneumatic clamps
- Electronic Counter (Labels/ Meters/ Rolls/ Total meters and labels Counter / Information of actual diameter)
- Job memory for easy and quick job set ups
- Paper break detection
- QRC (Quick Remote Connection)- For fast and easy access to the machine remotely
- Automatic web tension control system by servo motors – Constant and Taper tension
- Reverse jog
- Start & Stop pedals
- Multi language HMI touch screen
- New job assistant
- Electrical supply according to destination country (no need of transformers)
- CE conformity certificated, user manual and electrical scheme
(*) material & trim can influence machine speed/performance
UNWINDER
- Servo driven with max. Ø 840 mm (27,5″)
- Pneumatic shaft ID 76mm (3″)
- Automatic stop at master roll end with programmable end of roll function
- Clockwise/counterclockwise unwinding
- Electronic web guide system with ultrasonic sensor which enables guiding of opaque and clear materials

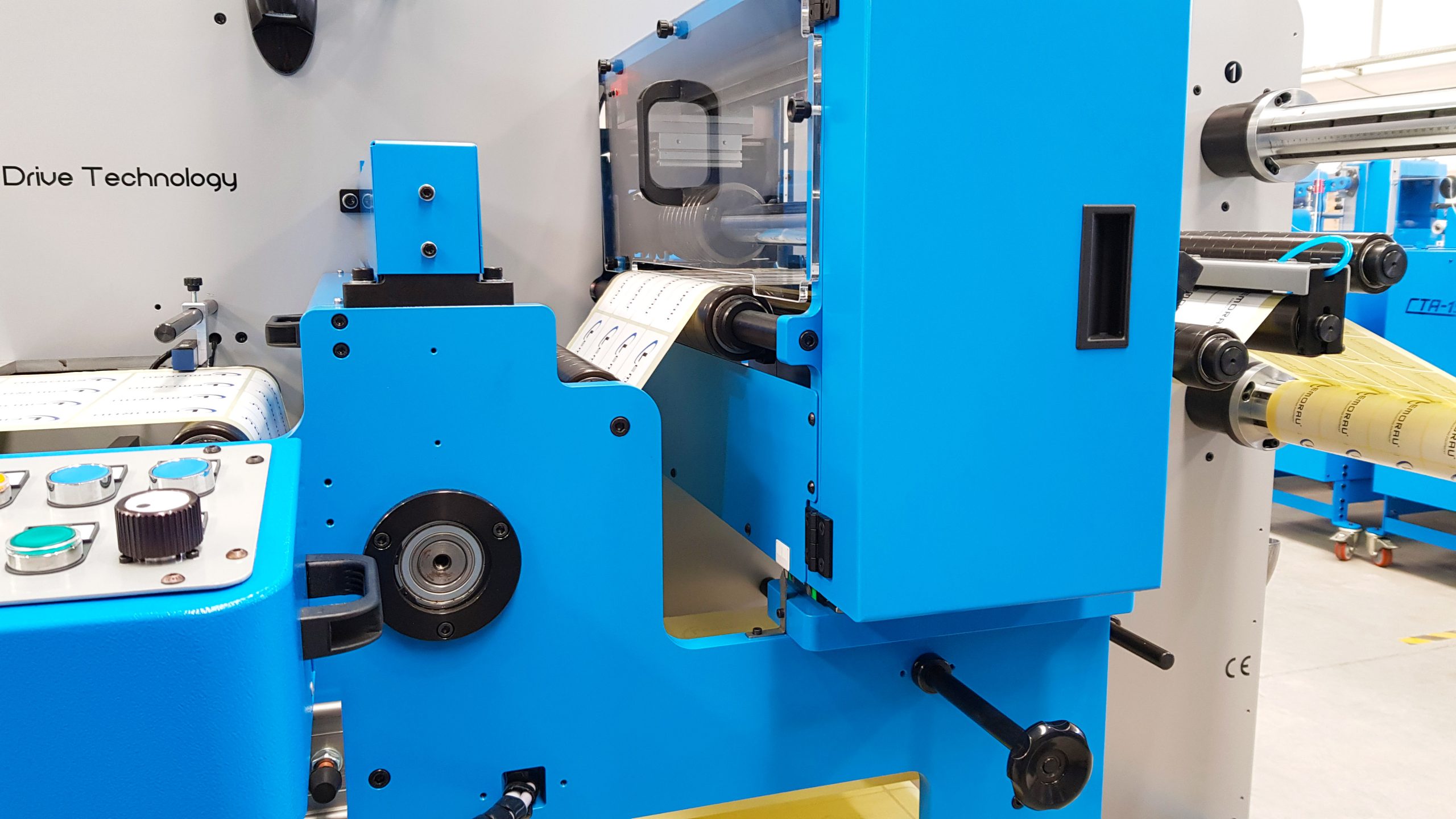

SLITTING UNIT
- Full Automatic Slitting with optical sensor
- Air trim removal
REWINDING
- Servo driven equipped with 1 interchangeable pneumatic rewinder 1- ID 76mm (3″)
- Semi-automatic rewinding (when having optional double rewinder)
- Clockwise/counterclockwise rewinding (labels in/ labels out)
- Max. rewinder Ø 580mm (23″) using single rewinder / 350mm (14″) using optional double rewinder
Optional Equipment
Optional Equipment
- Additional mandrels in customized sizes
- Additional slitting knives (up to a total of 9 sets)
- Anti-static bar
- Clear on clear sensor
- Double rewinder
- QR code reader for an automatic set up
- Razor knives
- Rewinder for defects
- Video inspection
Key Benefits
Designed for demanding production environments, the ICR4 combines advanced inspection, automated slitting and servo-driven web handling for high productivity, precision and consistent finished roll quality.
- Automatic slitting with optical sensors
- Advanced inspection system
- Independent servo tension control
- Intelligent software & automation
