Overview

Lemorau EBF is a die cutting machine for high-volume production of sheet labels. Built with two die cutting units in register, full rotary, and servo drive technology, EBF delivers consistently high-quality finished sheet labels.

Standard Features

• Web width 250, 330, 400, 450 mm (10, 13, 16, 18″)
• Maximum speed: 100 m/min. (328 ft/min.)
• Electronic Counter (Meters/ sheets/ Total meters and total sheets Counter)
• Job memory for easy and quick job set ups
• Paper and matrix break detection
• QRC (Quick Remote Connection)- For fast and easy access to the machine remotely
• Automatic web tension control system by servo motors – Constant and Taper tension
• Smart Gap – Software compatible with all digital printers
• Multi language HMI touch screen
• Movable control panel
• Electrical supply according to destination country (no need of transformers)
• CE conformity certificated, user manual and electrical scheme

UNWINDER

• Servo driven with max. Ø 700 mm (27,5″)
• Pneumatic shaft ID 76mm (3″)
• Automatic stop at master roll end with programmable end of roll function
• Clockwise/counterclockwise unwinding
• Adjustable splice table with pneumatic clamps
• Electronic web guide system with ultrasonic sensor which enables guiding of opaque and clear materials

DIE CUTTING

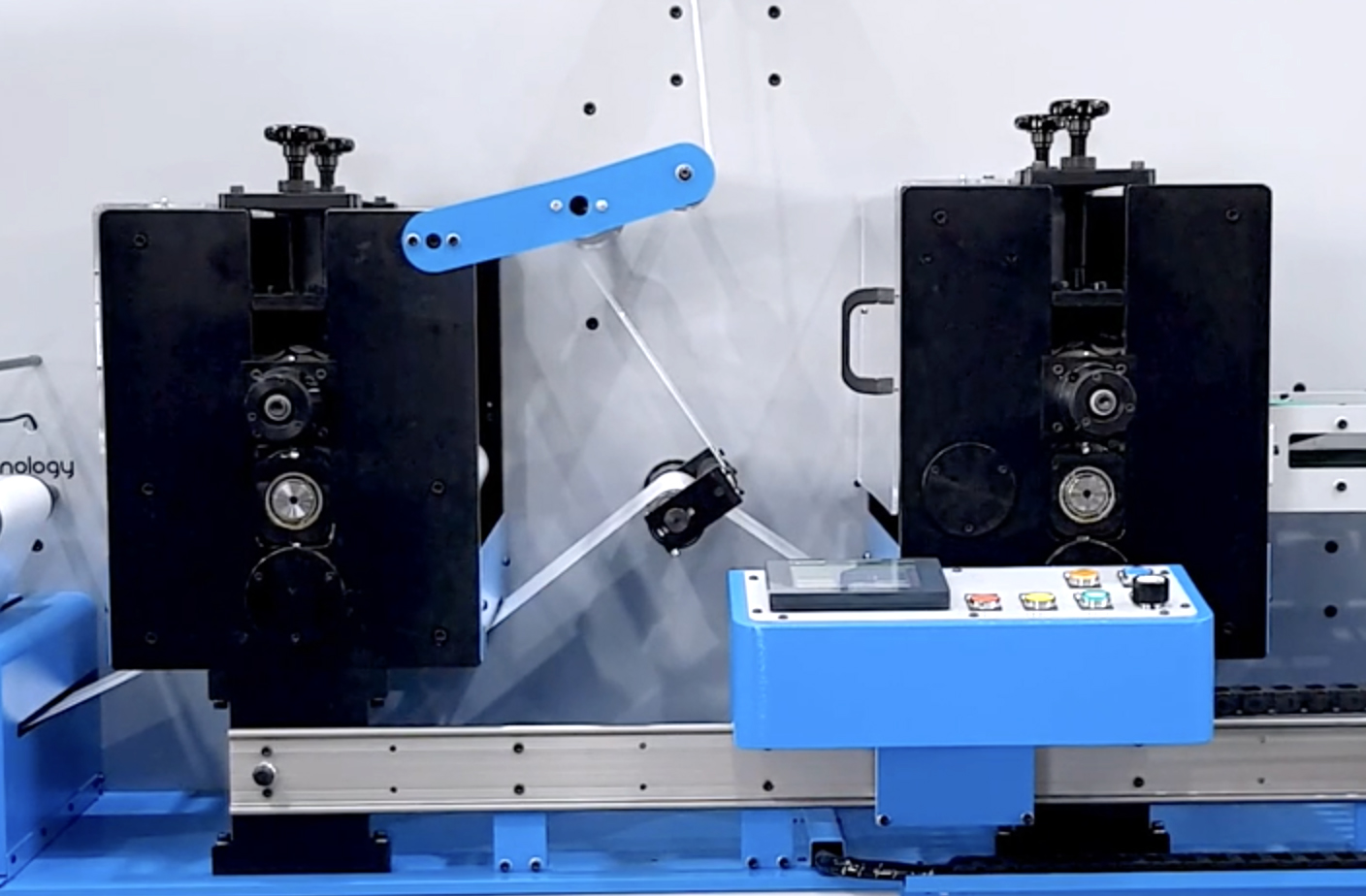

• Double die cutting unit in register full rotary
• Die repeats: min. 203,20 mm (8″) – max. 460,375 mm (18″)
• Standard gears for magnetic cylinders are 1/8 CP, straight teeth, angle 20 degrees
• Servo driven waste rewinder max. Ø 600mm (24″)
• Pneumatic waste shaft ID 76mm (3″)

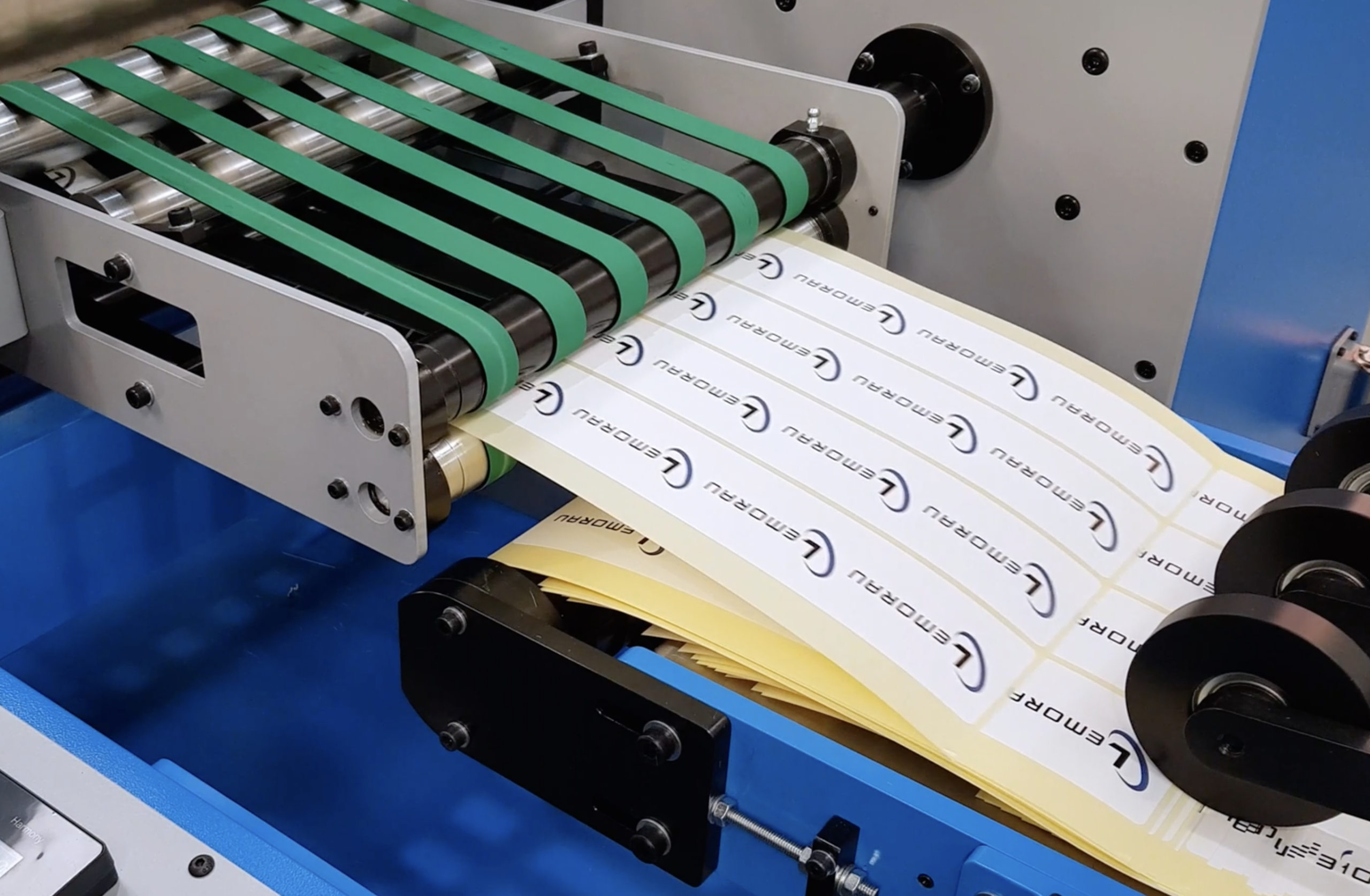

CONVEYOR

• Servo driven
• Non stop sheet batch counter feature

Optional Equipment

• Anvil roll with adjustable gap
• Modular 1 meter (40″) unwinder diameter
• Pressure gauges for die cutting unit
• Smart sheet cutting (no tools required for any repeat size of sheets)
• Total cut to format labels
